Haivision Air

Ultra-portable mobile video transmitters for live broadcast contribution over bonded cellular networks.

Speak to an Expert
Haivision Air

Transmit Live Video over 5G from Anywhere

Haivision Air mobile transmitters deliver low-latency HD video over bonded cellular and IP networks in an ultra-compact form factor. Combining HEVC and H.264 encoding with 5G, 4G, Wi-Fi, and Ethernet connectivity, Haivision Air enables live video transmission for news, sports, interviews, and field production workflows.

Built for mobile production teams, Haivision Air combines a lightweight design with flexible carrying and mounting options, including a dedicated pouch, belt clip, or on a tripod. An integrated rechargeable battery provides up to 3 hours of operation.

Live Contribution on the Move

From breaking news and live interviews to on-location reporting, Haivision Air is made for fast-moving production teams that need to capture the story wherever it unfolds.

Live Contribution on the Move

From breaking news and live interviews to on-location reporting, Haivision Air is made for fast-moving production teams that need to capture the story wherever it unfolds.

Air320e-5G

Encoding
HEVC & H.264
Video
HD
Modems
2 x 5G/4G modems
Inputs
SDI, HDMI
Outputs
SDI, HDMI
Power
Internal battery
(up to 3 hours)
Download Datasheet

Air220

Encoding
H.264
Video
HD
Modems
2 x 4G modems
Inputs
SDI, HDMI
Outputs
SDI, HDMI
Power
Internal battery
(up to 3 hours)
Download Datasheet

Air200

Encoding
H.264
Video
HD
Modems
2 x 5G/4G modems
Inputs
SDI, HDMI
Outputs
SDI, HDMI
Power
Internal battery
(up to 3 hours)
Download Datasheet
Category Air320e-5G Air220 Air200
Video Quality & Processing
Standards HD: 1080p25/29.97/30/50/59.94/60
1080i50/59.94/60
720p50/59.94/60
SD: PAL, NTSC
Encoding H.265/HEVC 4:2:0, 8-bit
H.264/AVC 4:2:0, 8-bit
Dynamic resolution adjustment		 H.264/AVC 4:2:0, 8-bit
Dynamic resolution adjustment
Inputs SDI, HDMI
Network Connections
Cellular 2 x 5G/4G/3G worldwide compliant modems with high gain custom antennas (sub-6 GHz).
Extensible with external modems (2 x USB ports)
IPv4 and IPv6 compliant		 2 x 4G/3G worldwide compliant modems with high gain custom antennas (sub-6 GHz).
Extensible with external modems (2 x USB ports)
IPv4 and IPv6 compliant		 N/A
Advanced Features
Video Return Full HD video return
Sub-second latency
AES encryption
Return feed generation
Audio Intercom/IFB
Bluetooth or wired headset
Interfaces
1 x 3G-SDI input (BNC), 1 x 3G-SDI output (BNC)
1 x HDMI 1.4 input, 1 x HDMI 1.4 output
1 x RJ-45 Ethernet
2 x USB 3.0 (type-A)
1 x 3.5 mm audio jack (for IFB / intercom headset)
2 x mini XLR balanced (for analog audio)
1 x SD card slot
4 x micro SIM slots
Power Supply
Internal 48Wh battery (up to 3 hours)
DC input 19V
ⓘ Specifications subject to change without notice. Values are typical unless specified.
Category Air320e-5G / Air220 / Air200
Video Quality & Processing

Standards

HD: 1080p25/29.97/30/50/59.94/60
1080i50/59.94/60
720p50/59.94/60
SD: PAL, NTSC

Encoding

Air320e-5G

H.265/HEVC 4:2:0, 8-bit
H.264/AVC 4:2:0, 8-bit
Dynamic resolution adjustment

Air220 / Air200

H.264/AVC 4:2:0, 8-bit
Dynamic resolution adjustment

Inputs

SDI, HDMI
Network Connections

Cellular

Air320e-5G

2 x 5G/4G/3G worldwide compliant modems with high gain custom antennas (sub-6 GHz).
Extensible with external modems (2 x USB ports)
IPv4 and IPv6 compliant

Air220

2 x 4G/3G worldwide compliant modems with high gain custom antennas (sub-6 GHz).
Extensible with external modems (2 x USB ports)
IPv4 and IPv6 compliant

Air200

N/A

Advanced Features

Video Return

Full HD video return
Sub-second latency
AES encryption
Return feed generation

Audio

Intercom/IFB
Bluetooth or wired headset
Interfaces
1 x 3G-SDI input (BNC), 1 x 3G-SDI output (BNC)
1 x HDMI 1.4 input, 1 x HDMI 1.4 output
1 x RJ-45 Ethernet
2 x USB 3.0 (type-A)
1 x 3.5 mm audio jack (for IFB / intercom headset)
2 x mini XLR balanced (for analog audio)
1 x SD card slot
4 x micro SIM slots
Power Supply
Internal 48Wh battery (up to 3 hours)
DC input 19V
ⓘ Specifications subject to change without notice. Values are typical unless specified.

Reliable 5G, 4G, and Satellite Connectivity

Transmit premium quality live broadcast video over two bonded cellular connections, plus Ethernet or Wi-Fi, using Haivision’s Emmy® Award-winning SST network bonding technology. Haivision Air supports 3G, 4G, 5G, and LEO satellite networks, enabling live video broadcasts in any networks conditions.

Pristine-Quality Video for Broadcast Production

Haivision Air delivers high-quality live video HD with low latency HEVC and H.264 encoding to maximize bandwidth efficiency while matching broadcast production requirements. Stream directly to SDI, IP, or cloud workflows with the versatile Haivision StreamHub receiver for secure point-to-point video.

Advanced Field Contribution Capabilities

Enable real-time communication between production and field teams with low latency video return, built-in intercom, and IFB features. Furthermore, Haivision Air can be connected to a PTZ camera that can be remotely controlled from afar.

Ultra-Compact Design

With an integrated rechargeable battery within an ultra-compact enclosure, Haivision Air transmitters can be carried in a dedicated pouch, clipped to a belt or mounted on a tripod. Its easy-to-use UI can be accessed directly from the unit’s embedded screen or remotely from a web browser.

Ready to Deploy an Air Mobile Video Transmitter?

Explore the Air datasheet for complete technical specifications, or speak with an expert to discuss your broadcast requirements and find the right configuration for your workflow.
Speak to an Expert
Download Datasheet

Related Products

Haivision Falkon

Falkon

Video Transmitter
Live video transmitter that delivers ultra-reliable, low-latency HD and UHD video over 5G, 4G and satellite.
Haivision StreamHub receiver decoder

Haivision StreamHub

Receiver/Gateway
Mobile and IP stream receiver, decoder, and distribution platform supporting SDI, NDI, ST 2110, SRT, and SST.
Haivision hub 360 - cloud-based master control solution

Haivision Hub 360

Master Control
Cloud-based master control and live contribution device management.

Level up your next live production with our custom rental packages.

View Rental Services

Related Solutions

Solutions de Contribution Vidéo

Live Video Contribution

Our secure & reliable live video solutions offer pristine-quality broadcast contribution over any network, even internet, satellite, 4G, & 5G.
Solutions de Contribution Vidéo

Live Video Contribution

Our secure & reliable live video solutions offer pristine-quality broadcast contribution over any network, even internet, satellite, 4G, & 5G.

Unlocking the Potential of 5G
for Live Broadcast Production

How 5G will completely change broadcast contribution and remote production

Download the Whitepaper

Industries

Broadcast Contribution

Broadcast

Haivision’s live video solutions fuel ultra-low latency, pristine-quality live sports, news, and event productions over any network.
Broadcast Contribution

Broadcast

Haivision’s live video solutions fuel ultra-low latency, pristine-quality live sports, news, and event productions over any network.

Start Your Next Great Broadcast with Haivision

Speak to an Expert

Related Resources

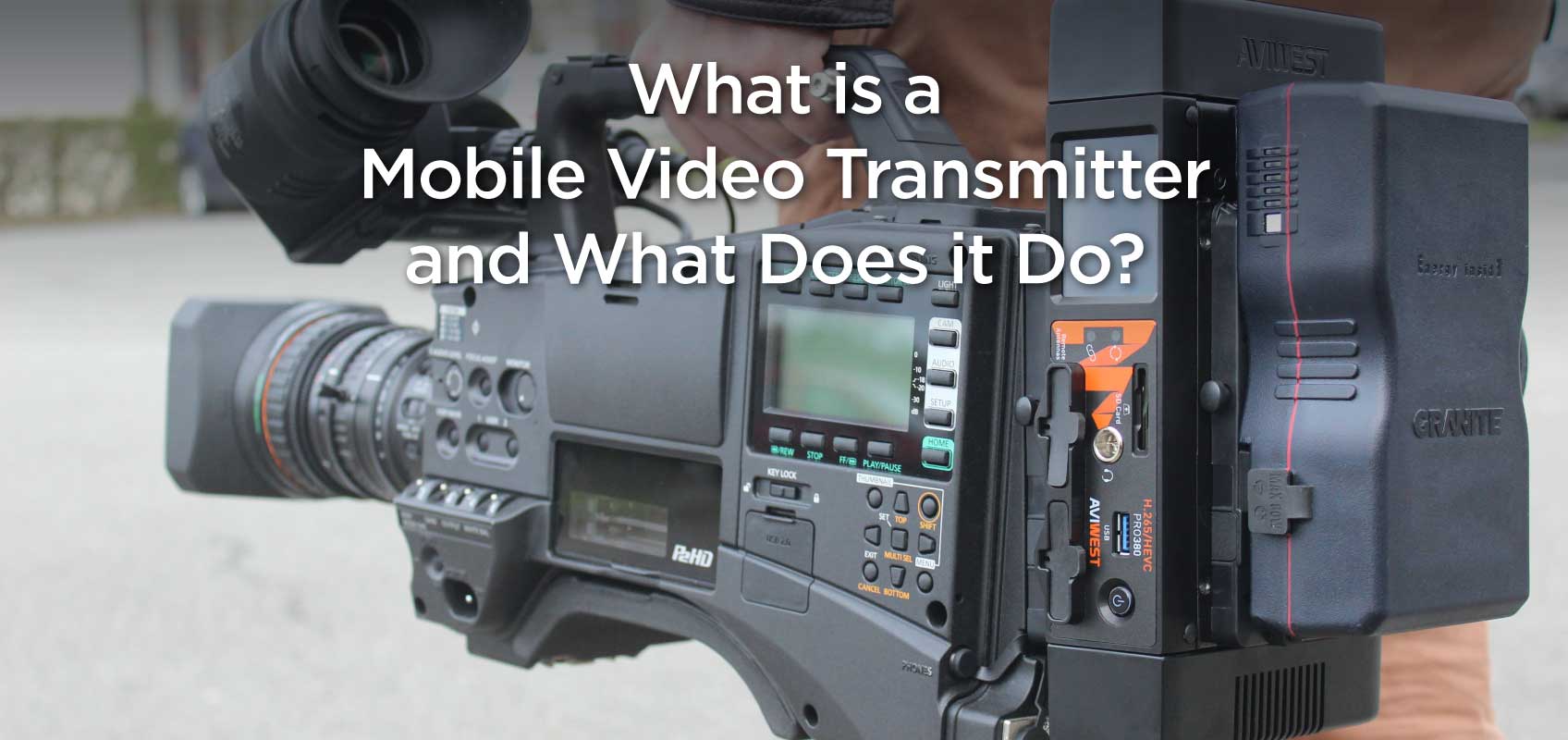

Haivision Pro Mobile Video Transmitter
