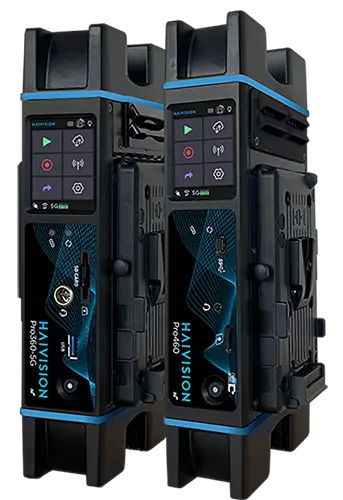

Reliable video contribution over cellular networks with Haivision Pro.
Reliable video contribution over cellular networks with Haivision Pro.
Reliable video contribution over cellular networks with Haivision Pro.

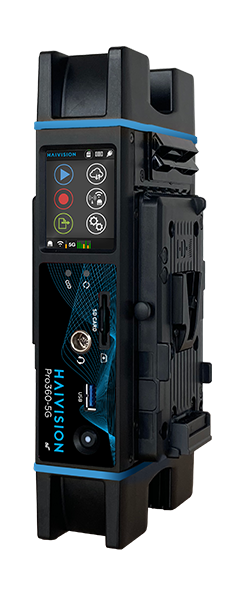

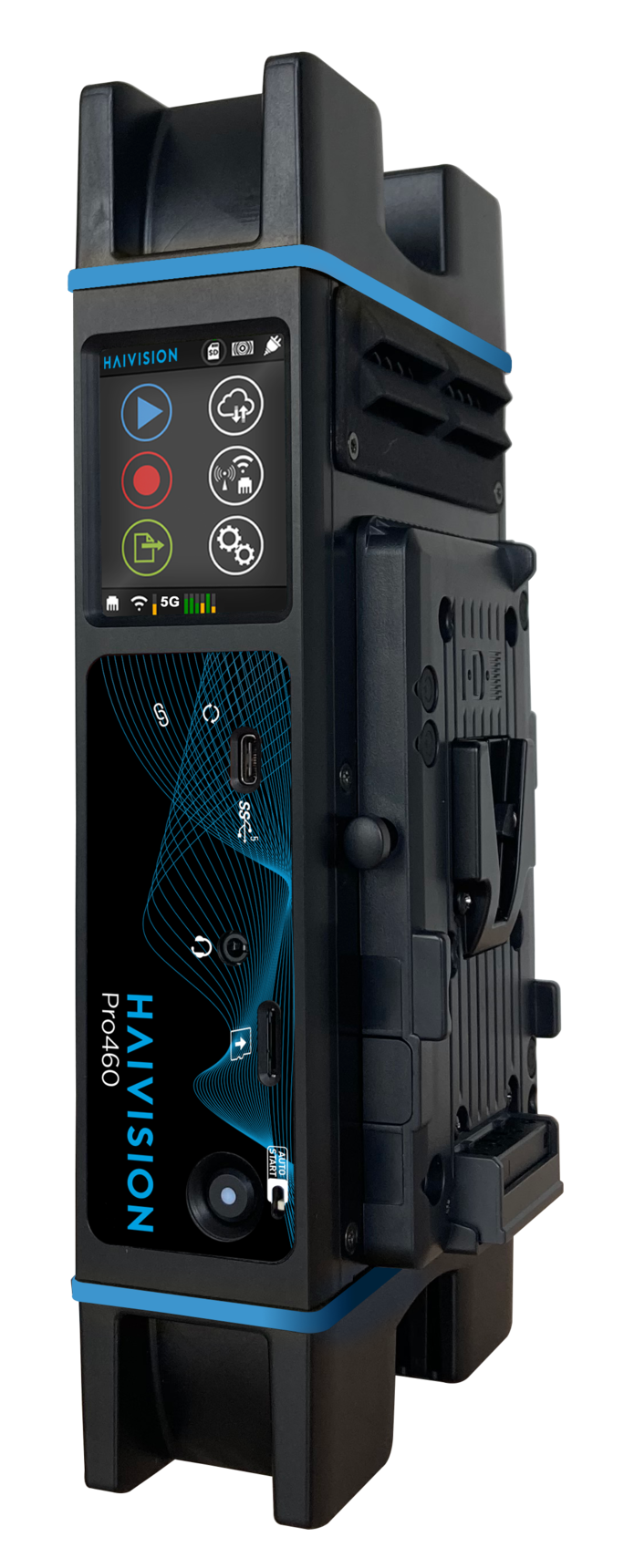

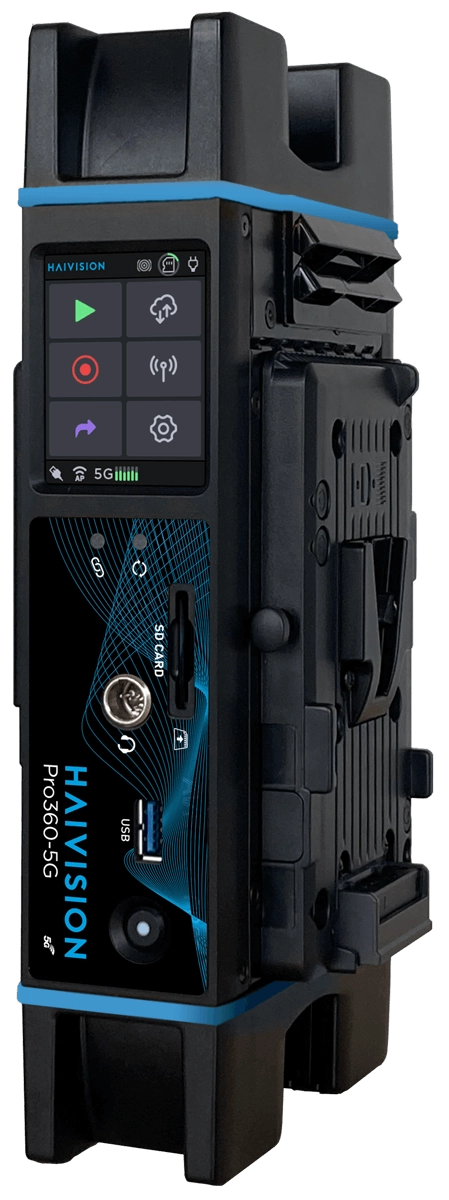

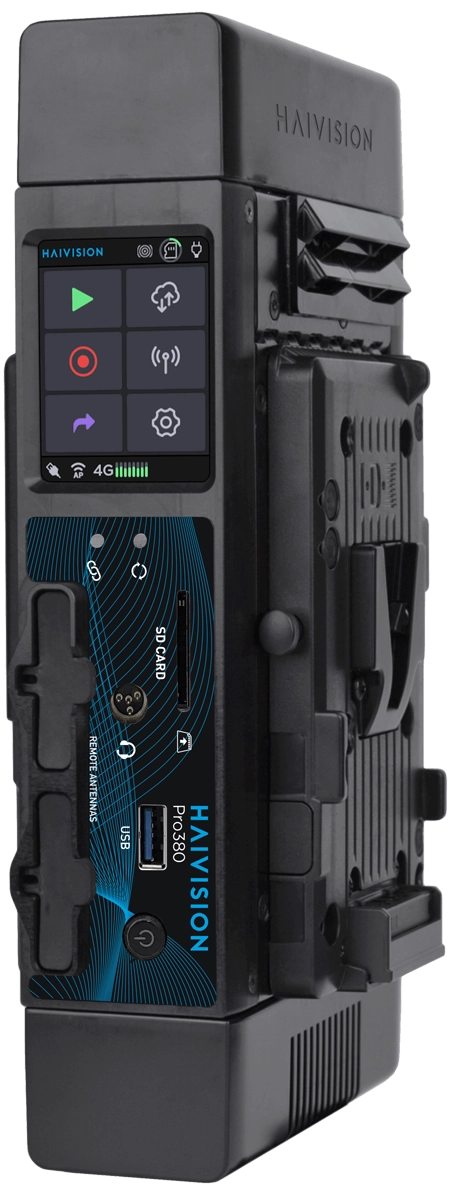

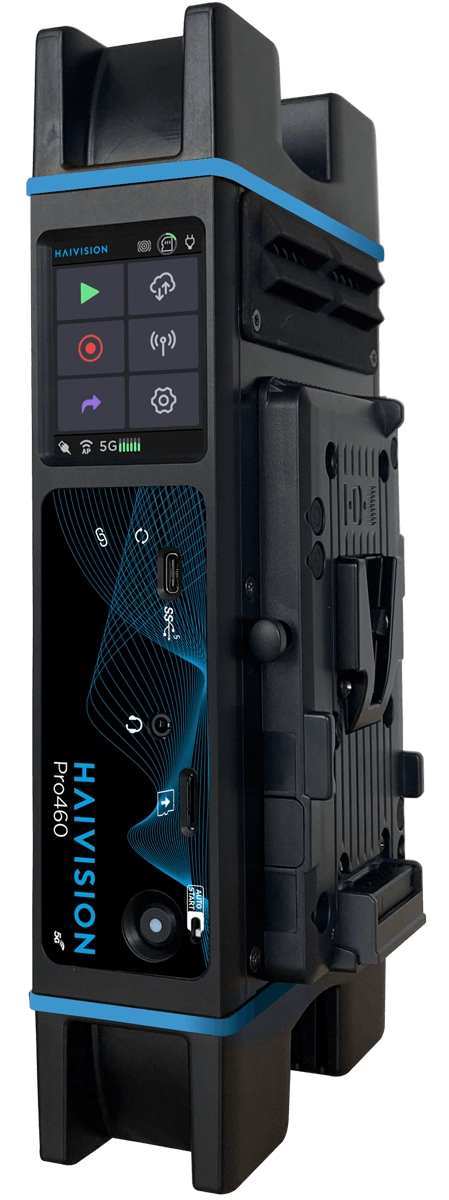

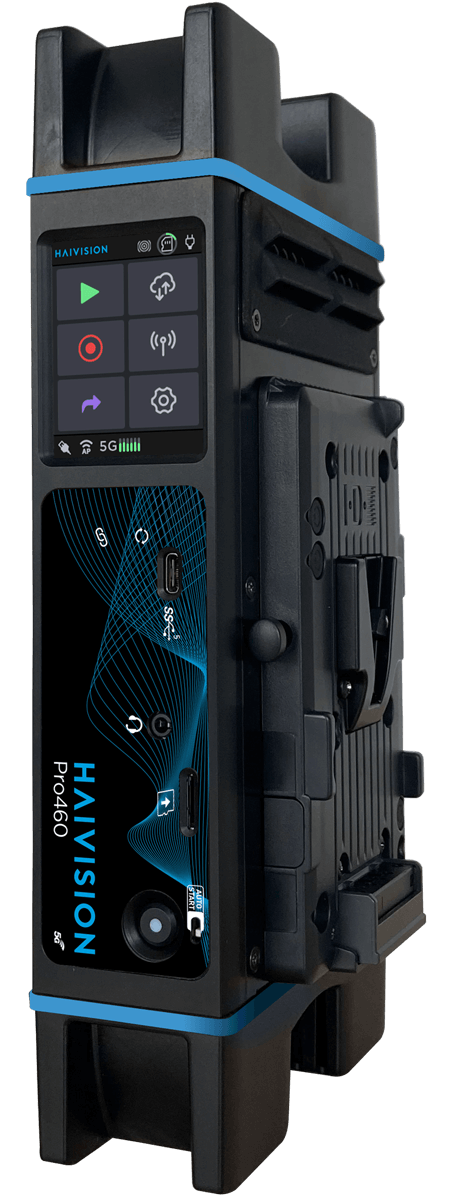

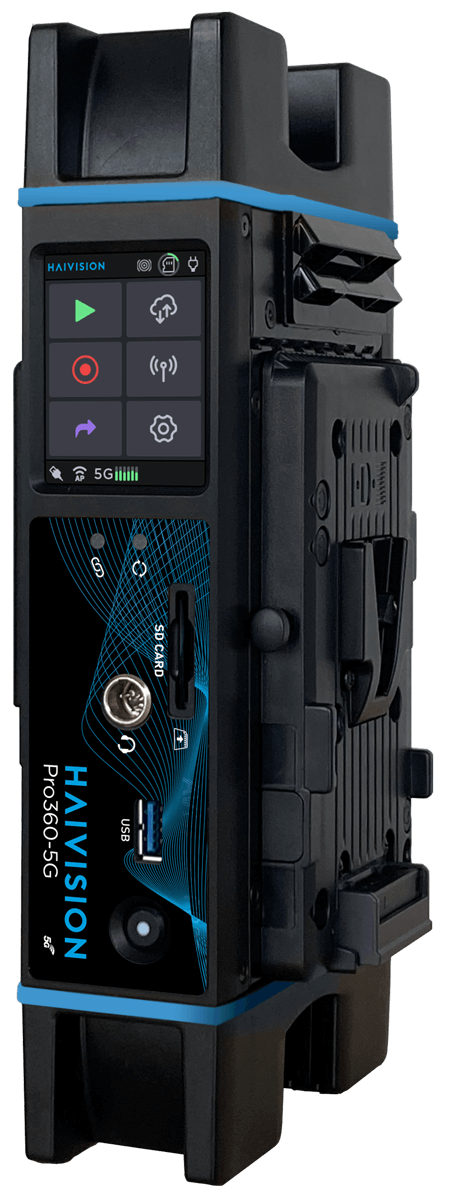

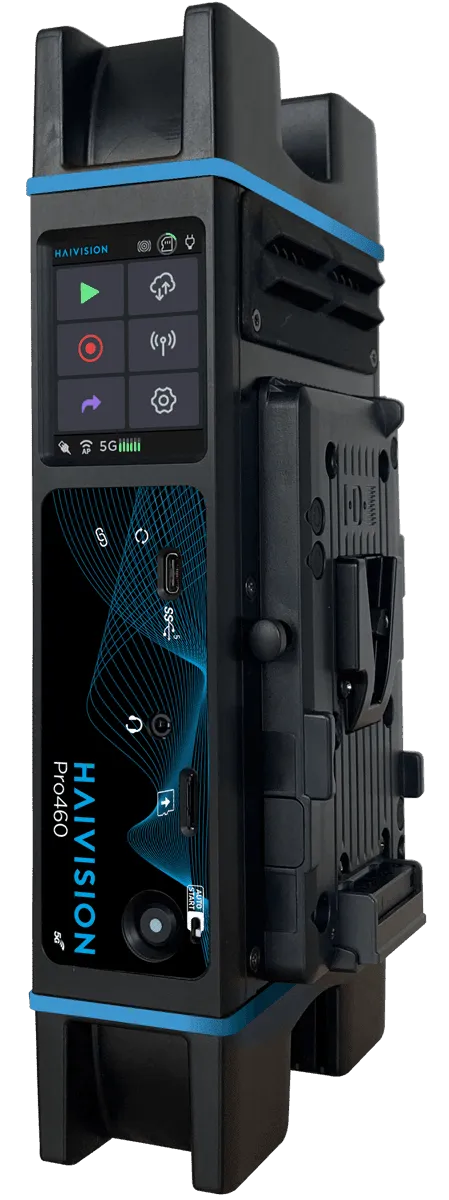

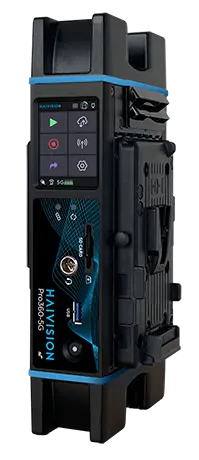

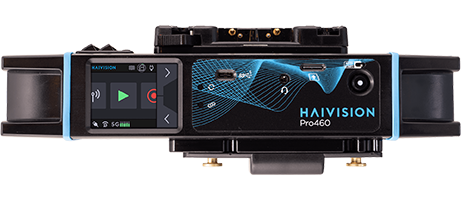

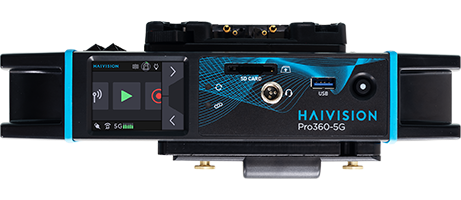

| Category | Pro460 | Pro360-5G |
|---|---|---|
| Video Quality & Processing | ||
| Standards | UHD: 2160p60/59.94/50/30/29.97/25/24/23.98 HD: 1080p60/59.94/50/30/29.97/25/24/23.98 1080i60/59.94/50 720p60/59.94/50 |
HD: 1080p60/59.94/50/30/29.97/25 1080i60/59.94/50 720p60/59.94/50 SD: PAL, NTSC |
| Density | Single UHD/HD Quadruple HD |
Single HD |
| Encoding | H.265/HEVC 4:2:0/4:2:2, 8/10-bit H.264/AVC 4:2:0, 8-bit Dynamic resolution adjustment High Dynamic Range (HLG & PQ) |
H.265/HEVC 4:2:0, 8-bit H.264/AVC 4:2:0, 8-bit Dynamic resolution adjustment |
| Network Connections | ||

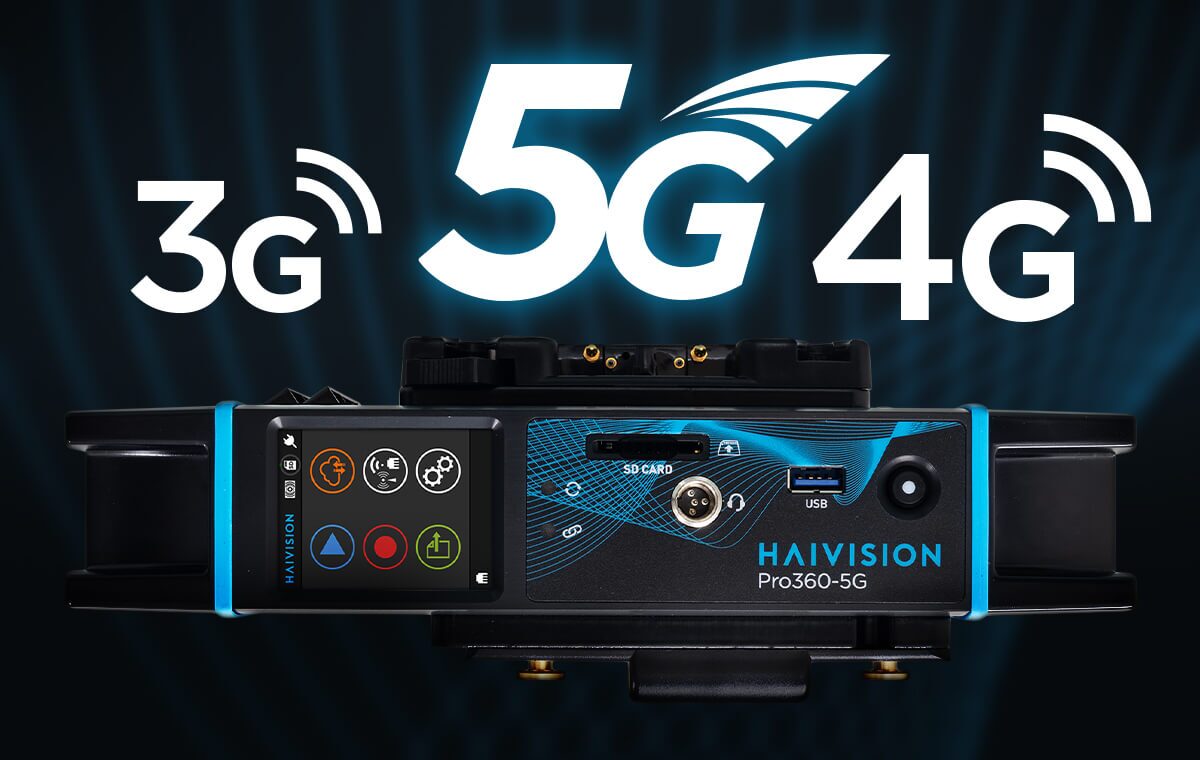

| Cellular | 6 x 3G/4G/5G world-wide compliant modems IPv4 and IPv6 compliant Sub 6GHz bands SA (Stand Alone) and NSA (Non Stand Alone) Internal high efficiency antennas |
6 x 3G/4G/5G, 4 or 8 x 3G/4G world-wide compliant modems with Internal high efficiency antennas External high efficiency Haivision Quad antenna array IPv4 and IPv6 compliant |
| Interfaces | ||

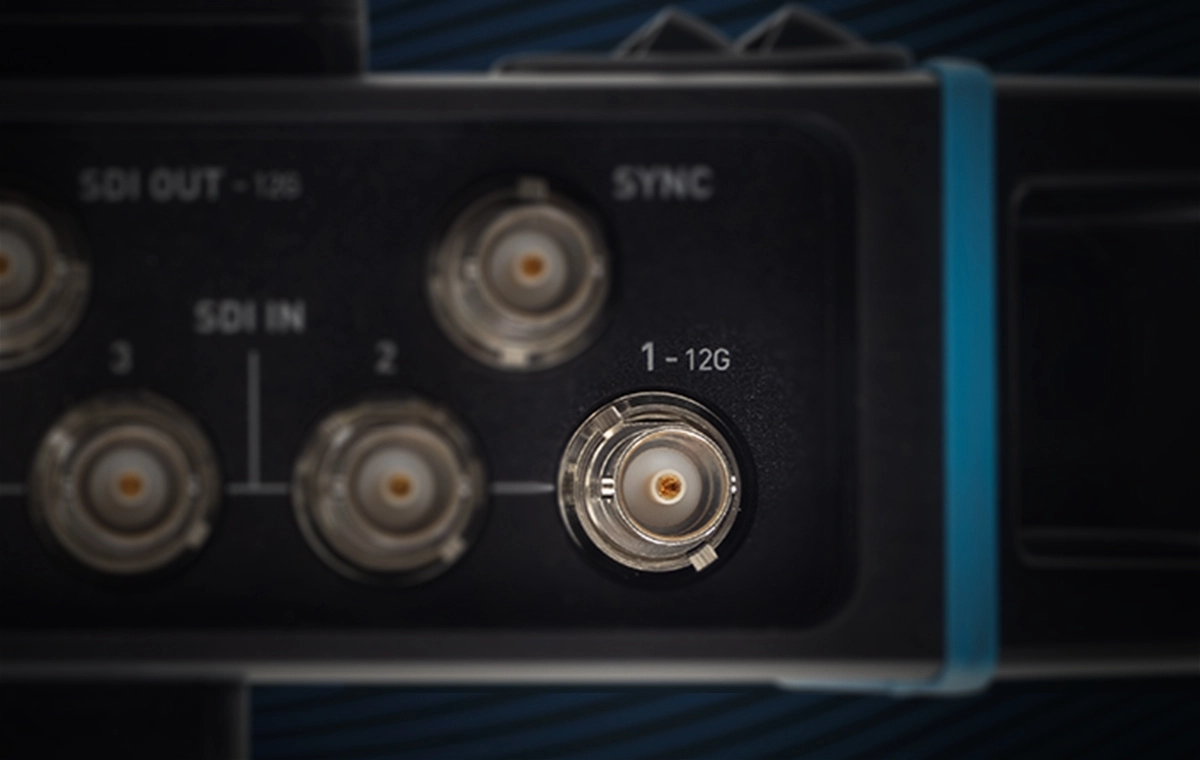

| 1 x 12G/3G-SDI input and 3 x 3G-SDI inputs (BNC) 1 x 12G-SDI output (BNC) – for future use 1 x HDMI 1.4 output 1 x GenLock input (BNC) 2 x Gigabit RJ-45 Ethernet 2 x USB 3.0 (type-A), 1 x USB 3.0 (type-C) 6 x micro SIM slots 1 x mini jack for IFB/intercom headset 1 x micro SD card slot |
1 x 3G-SDI input, 1 x 3G-SDI output (BNC) 1 x HDMI 1.4 input, 1 x HDMI 1.4 output 2 x RJ-45 Ethernet 1 x USB 3.0 (type-A) 4/6/8 x micro SIM slots 1 x mini XLR for IFB/intercom headset 2 x mini XLR balanced (for analog audio) 1 x SD card slot |
|
| Advanced Features | ||
| Video Return | Full HD video return Sub-second latency AES encryption Return feed generation (up to 2 interlaced or 4 progressive video sources) |
Full HD video return Sub-second latency AES encryption Return feed generation |
| Audio | Intercom/IFB with AES encryption Bluetooth or wired headset |
Intercom/IFB Bluetooth or wired headset |
UHD: 2160p60/59.94/50/30/29.97/25/24/23.98
HD: 1080p60/59.94/50/30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
HD: 1080p60/59.94/50/30/29.97/25
1080i60/59.94/50
720p60/59.94/50
SD: PAL, NTSC
Single UHD/HD
Quadruple HD
Single HD
H.265/HEVC 4:2:0/4:2:2, 8/10-bit
H.264/AVC 4:2:0, 8-bit
Dynamic resolution adjustment
High Dynamic Range (HLG & PQ)
H.265/HEVC 4:2:0, 8-bit
H.264/AVC 4:2:0, 8-bit
Dynamic resolution adjustment
6 x 3G/4G/5G world-wide compliant modems
IPv4 and IPv6 compliant
Sub 6GHz bands
SA (Stand Alone) and NSA (Non Stand Alone)
Internal high efficiency antennas
6 x 3G/4G/5G, 4 or 8 x 3G/4G world-wide compliant modems with
Internal high efficiency antennas
External high efficiency Haivision Quad antenna array
IPv4 and IPv6 compliant
1 x 12G/3G-SDI input and 3 x 3G-SDI inputs (BNC)
1 x 12G-SDI output (BNC) – for future use
1 x HDMI 1.4 output
1 x GenLock input (BNC)
2 x Gigabit RJ-45 Ethernet
2 x USB 3.0 (type-A), 1 x USB 3.0 (type-C)
6 x micro SIM slots
1 x mini jack for IFB/intercom headset
1 x micro SD card slot
1 x 3G-SDI input, 1 x 3G-SDI output (BNC)
1 x HDMI 1.4 input, 1 x HDMI 1.4 output
2 x RJ-45 Ethernet
1 x USB 3.0 (type-A)
4/6/8 x micro SIM slots
1 x mini XLR for IFB/intercom headset
2 x mini XLR balanced (for analog audio)
1 x SD card slot
Full HD video return
Sub-second latency
AES encryption
Return feed generation (up to 2 interlaced or 4 progressive video sources)
Full HD video return
Sub-second latency
AES encryption
Return feed generation
Intercom/IFB with AES encryption
Bluetooth or wired headset
Intercom/IFB
Bluetooth or wired headset
