VPX Video Processors

The processing power, control, and flexibility you need to inform business and mission-critical decisions in your operations center.

Download Solution Guide
Speak to an Expert
VPX Video Processors

High-Performance Video Processing

VPX video processors power the Haivision Command 360 video wall solution, giving you the performance, control, and flexibility to monitor real-time video feeds, visualize high-resolution models, and build an enterprise-scale AV/IP network. Available in a range of sizes and capabilities, VPX is designed for any mission-critical application.
4K & UHD

Multi-4K, HD Capture and Display

Native Content Support

Native Content Support

High Density

High-Density Inputs and Outputs

24/7 Security

24/7 Reliability

Multi-Wall Control

Multi-Video Wall Control

Scalable

Flexible, Scalable Design

LCD Video Wall

Multi-4k, HD Capture and Display

Using VPX video processors, the Command 360 video wall solution can capture and display content across multiple 4K or HD screens from virtually any incoming signal format (digital or analog, physical or IP) and from nearly any device, including workstations, laptops, tablets, cameras, and media players.
Flexible Video Wall Design

Flexible, Scalable Design

Ensure your control room design can scale as your organization grows. Add capacity as needed through additional VPX processors with Command 360’s modular system architecture. This modularity ensures you never have to worry about outgrowing your video wall technology.

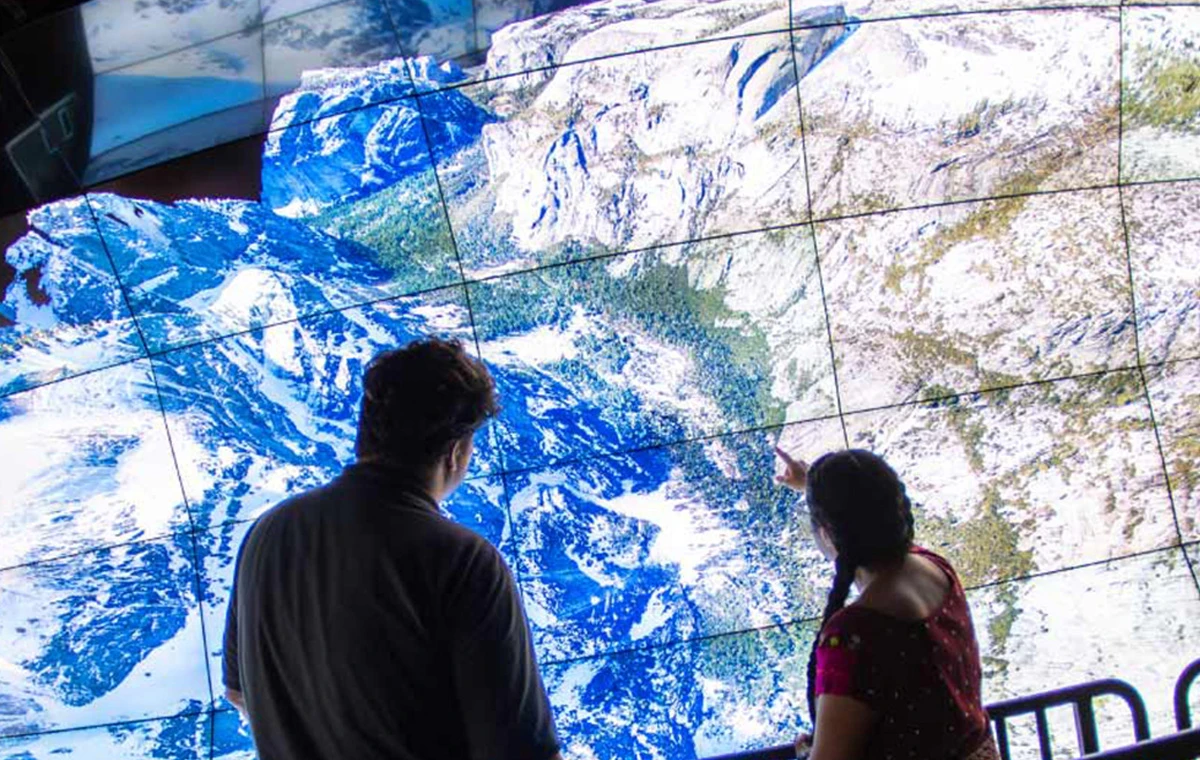

High density inputs and outputs

High-Density Inputs & Outputs

VPX is available in different sizes and capacities to support any video wall environment. From smaller options for single-room video wall environments to the highest-capacity configurations for multi-video wall or ultra-high resolution deployments, VPX enables you to manage more sources and displays at once.

Product Specifications

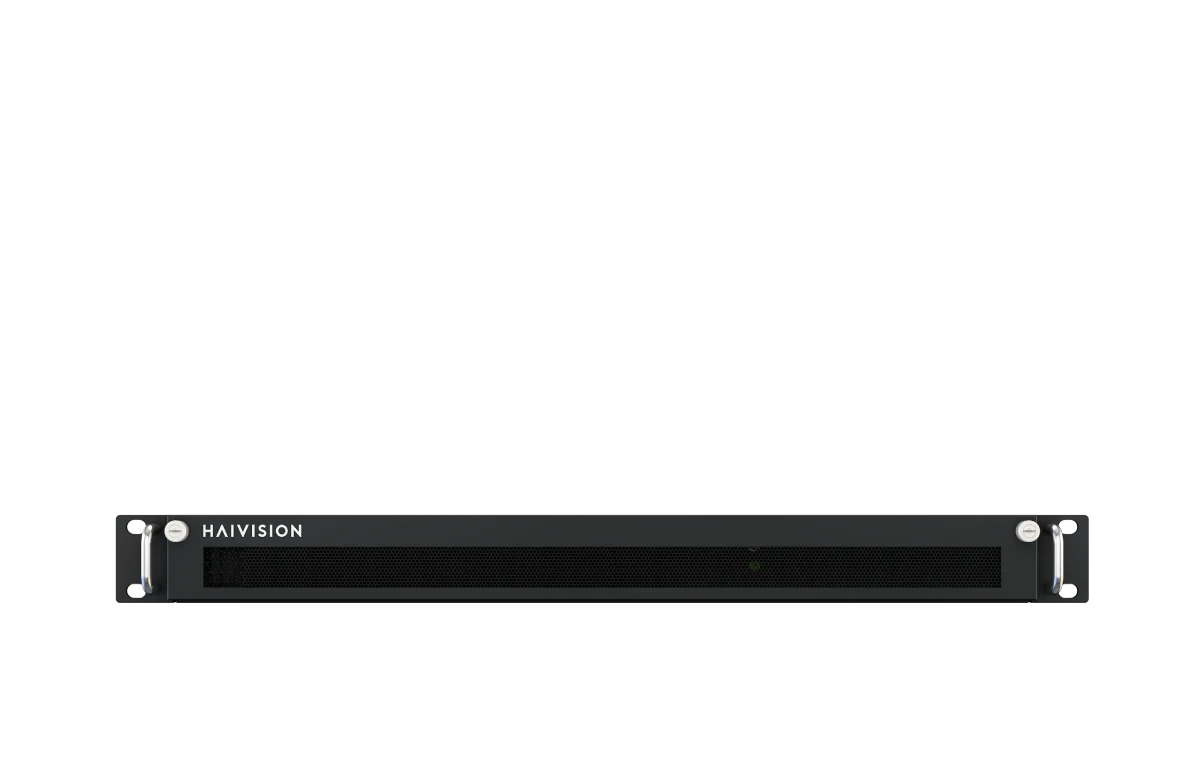

VPX Edge

VPX Edge

1RU
Input: Capture up to 8x HD or 2x UHD with any combination of H.264 IP or 4 HDMI (mini) 1.4 inputs

Output: Render up to 4x UHD DisplayPort 2.1 outputs, HDMI adapters included

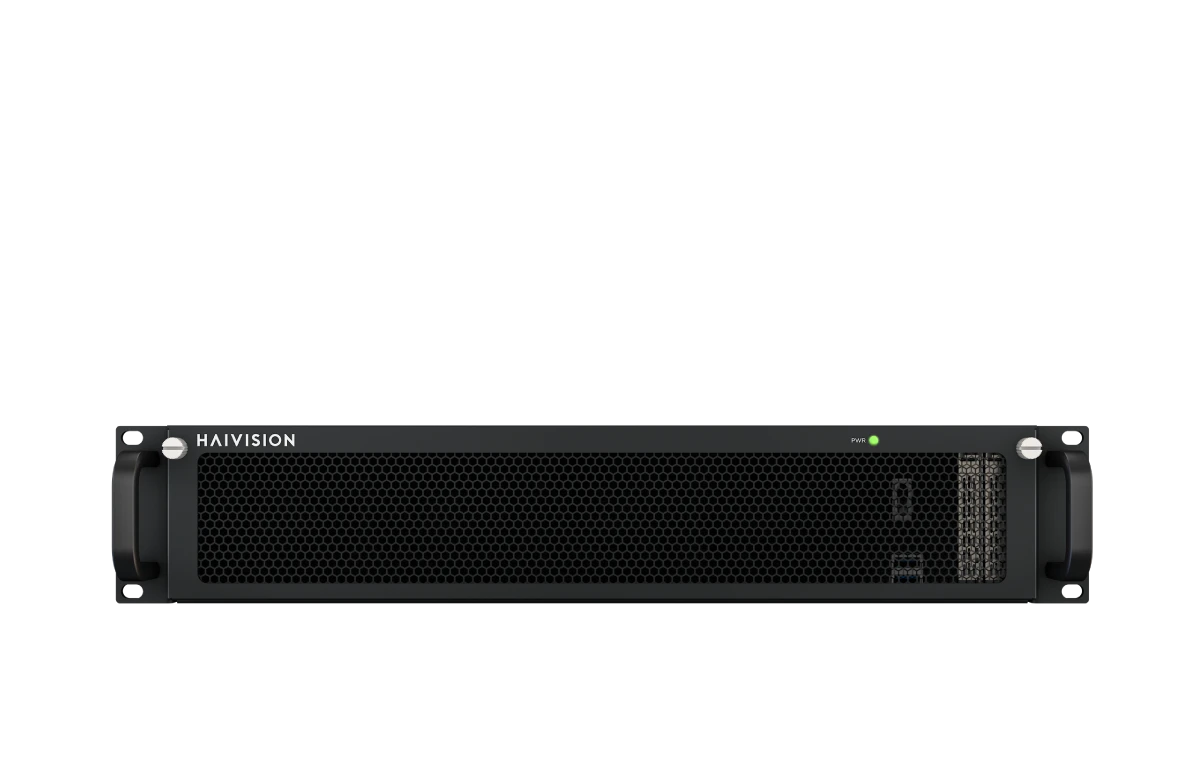

VPX Pro

VPX Pro

2RU
Input: Capture up to 16x HD or 4x UHD with any combination of H.264 IP or 8x HDMI (mini) 1.4 inputs

Output: Render up to 4x UHD DisplayPort 2.1 outputs, HDMI adapters included

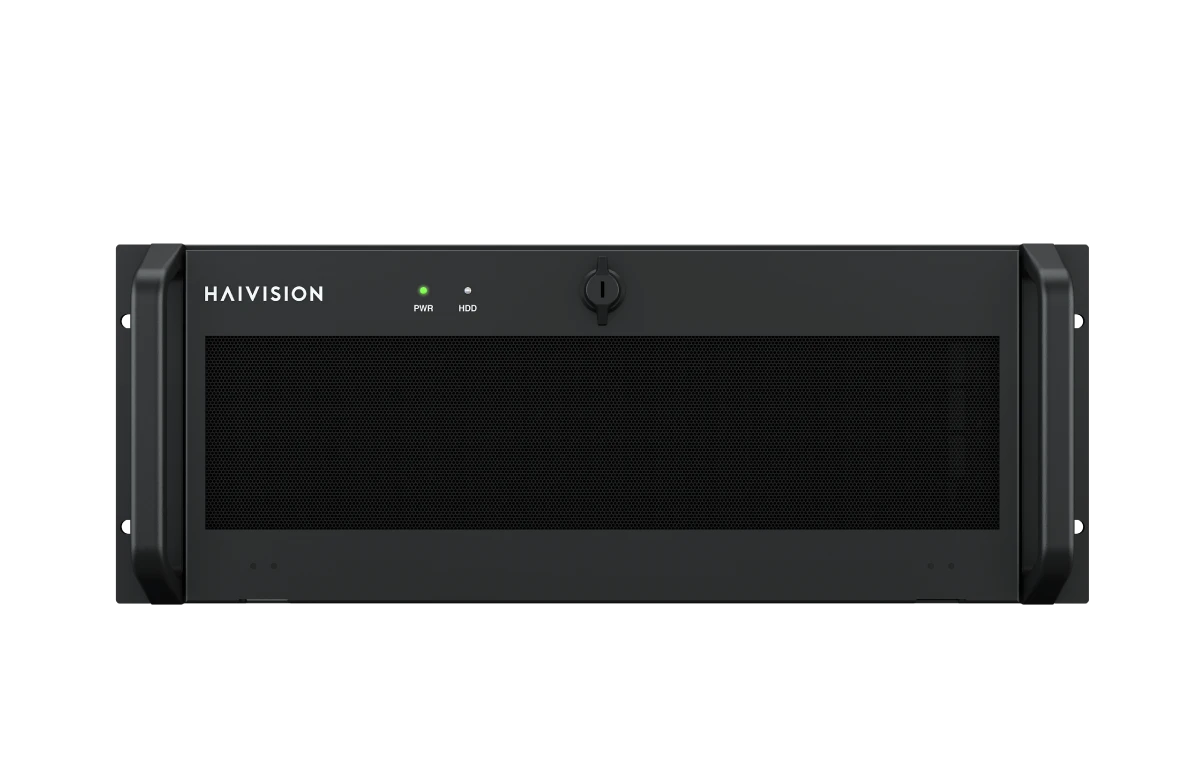

VPX Core

VPX Core

4RU
Input: Capture up to 32x HD or 8x UHD with any combination of H.264 IP or 20x HDMI (mini) 1.4 Inputs

Ouput: Render up to 8x UHD DisplayPort 2.1 outputs, HDMI adapters included

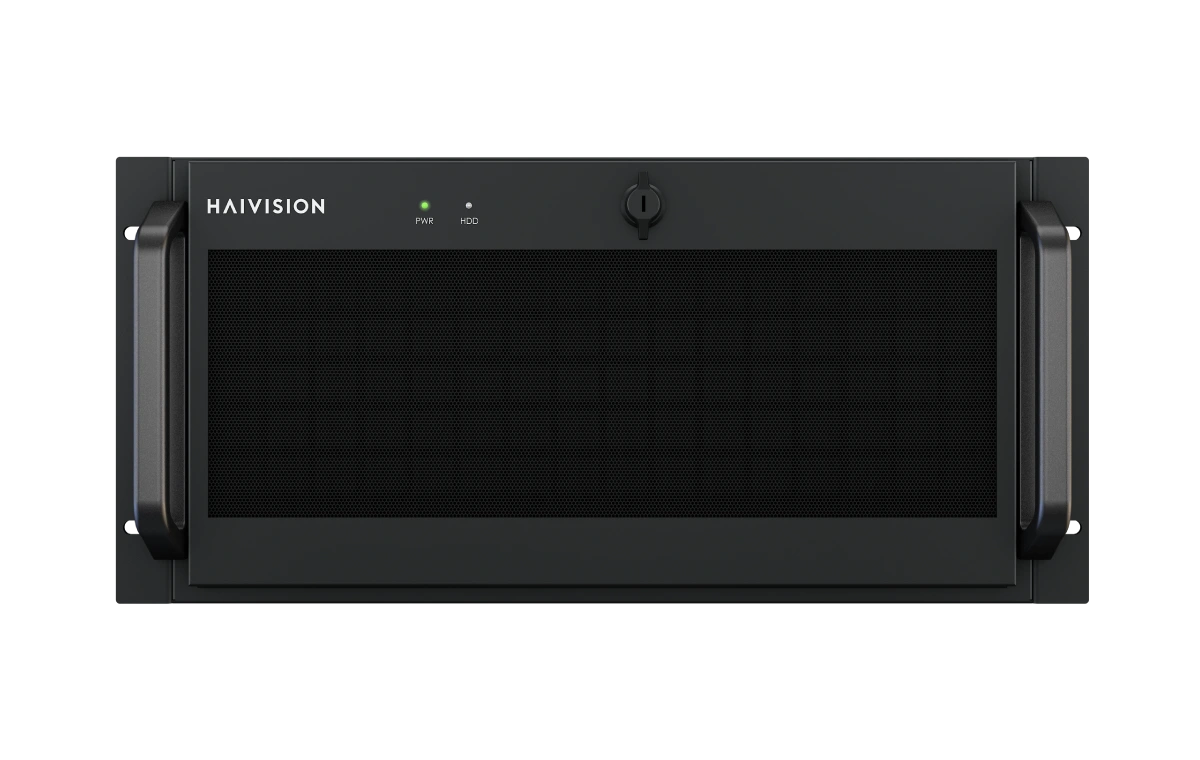

VPX Ultra

5RU
Input: Capture up to 64x HD or 16x UHD with any combination of H.264 IP or 36x HDMI (mini) 1.4 Inputs

Output: Render up to 16x UHD DisplayPort 2.1 outputs, HDMI adapters included
